Work Holding Fixture

Get a Price/Quote

Product Details:

Life Span Up to 5 Years
Working Process CNC Machining, Milling, Drilling, Clamping
Die Head Custom Designed
Shaping Mode Clamping Fixture
Material High Grade Alloy Steel
Application Industrial CNC Machining, Precision Work Holding
Hardness HRC 55-60
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Work Holding Fixture Product Specifications

Material High Grade Alloy Steel
Shaping Mode Clamping Fixture
Hardness HRC 55-60
Working Process CNC Machining, Milling, Drilling, Clamping
Life Span Up to 5 Years
Tolerance 0.01 mm
Application Industrial CNC Machining, Precision Work Holding
Die Head Custom Designed

Work Holding Fixture Trade Information

Main Domestic Market All India

Product Description

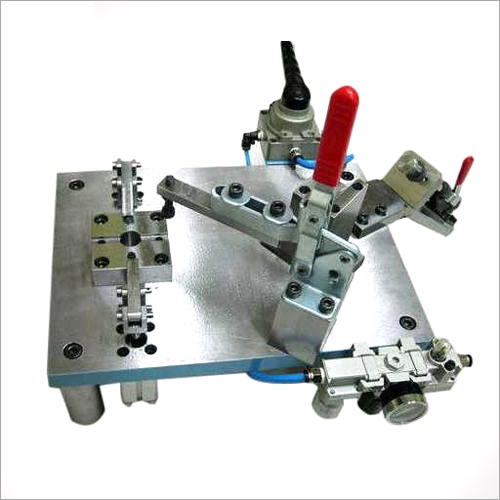

We are proposing Work Holding Fixture, which is a support device utilized commonly in the manufacturing industry. It can be used to securely locate as well as support the work. Ideal for automotive, construction, machine tool, valve, and various other industries, the fixture is well designed and manufactured by adept team members with the use of ultra-modern tools and high grade metal in line with industry standards. Easy to fit, wear & tear resistance, strong construction and durability, Work Holding Fixture can be availed at market justified prices.

Robust Construction and Precision Engineering

Manufactured from high-grade alloy steel with HRC 55-60 hardness and ground, polished surfaces, this work holding fixture delivers high durability, accuracy, and resistance to wear and corrosion. Its robust design accommodates exacting tolerance requirements and sustained use in rigorous machining environments.

Versatile Compatibility and Easy Mounting

This modular fixture is compatible with a variety of CNC machines, including horizontal and vertical machining centers, as well as drilling and tapping equipment. Its bolt-on base, complete with dowel pin location, enables simple and precise installation, making it suitable for both short-run and production-scale operations.

Enhanced Productivity and Longevity

With anti-rust treatment and a projected lifespan of up to 5 years, the fixture minimizes maintenance needs and maximizes usage cycles. Its modular nature and custom-designed die head ensure adaptability to diverse industrial applications, supporting consistent clamping and efficient workflow.

FAQs of Work Holding Fixture:

Q: How do I install the Work Holding Fixture on my machine?

A: The fixture features a bolt-on base and dowel pin location for secure and accurate mounting. Simply align the dowel pins with your machines table slots, secure with bolts, and ensure stability before clamping any workpiece.

Q: What types of machines are compatible with this fixture?

A: Our modular fixture is compatible with horizontal and vertical machining centers, as well as drilling and tapping equipment, making it suitable for various industrial machining setups.

Q: When should I use a modular mechanical fixture like this in my processes?

A: This fixture is ideal for applications requiring precise clamping and repeatable positioning, such as CNC machining, milling, and drilling operations where maintaining tolerance and stability is critical.

Q: Where can this fixture be utilized within my facility?

A: It can be effectively employed wherever precision work holding is necessaryespecially in CNC machining zones, milling departments, and quality-sensitive environments that prioritize tight tolerances.

Q: What is the process for adjusting the clamping range?

A: The modular design allows for easy adjustment up to 350 mm. Position the movable jaws or clamps as per your workpiece size, ensuring snug and stable clamping before proceeding with machining tasks.

Q: What are the main benefits of using this fixture?

A: Key advantages include high accuracy (0.01 mm tolerance), corrosion-resistant and durable construction, quick setup and adjustment, and a long lifespan, all contributing to increased productivity in industrial operations.
